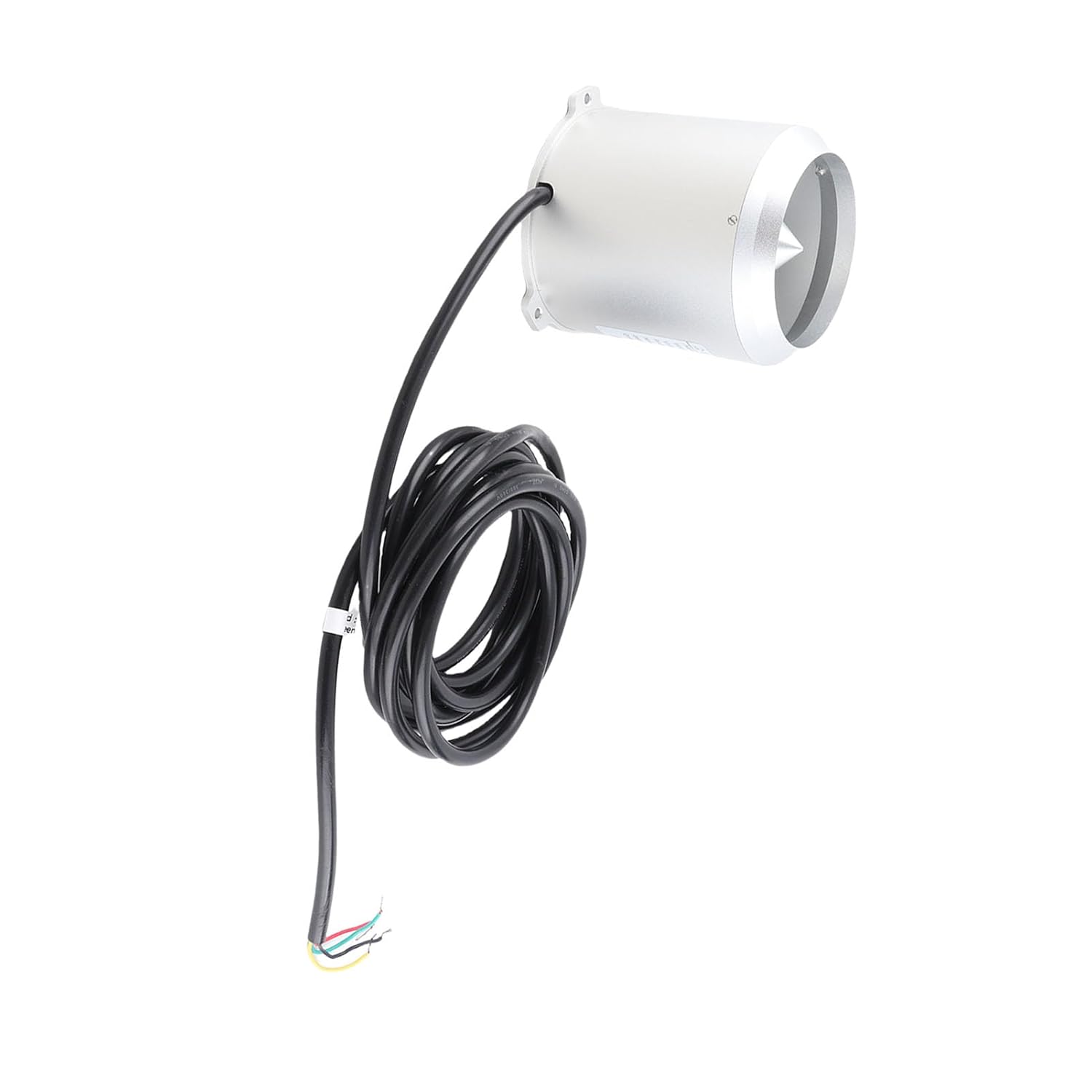

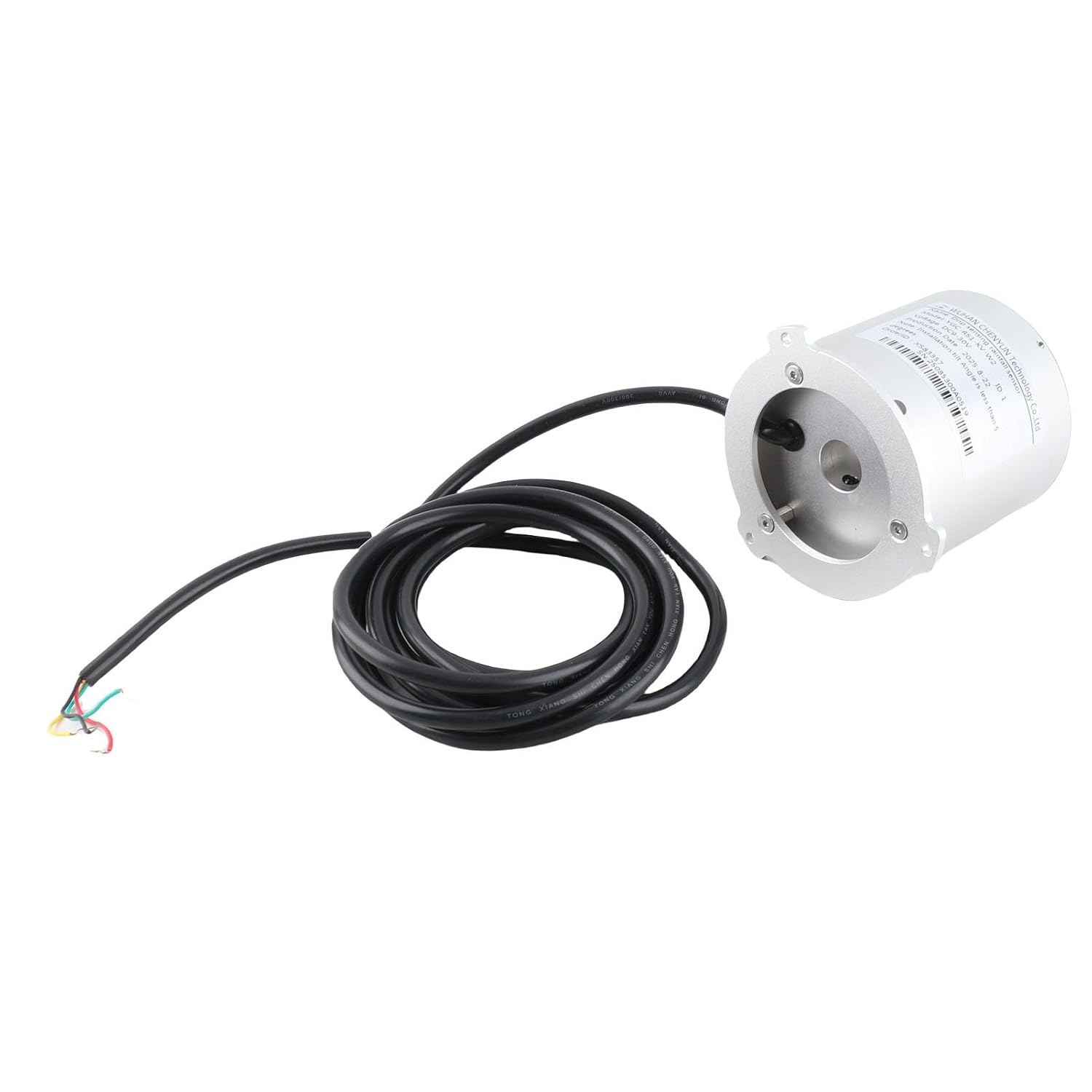

Rainfall Sensor RS485, Aluminum Alloy Rain Gauge Module, 85x78mm Weather Station Sensor - Precise Raindrop Measurement, IP65 Waterproof, Smart Monitoring

Item Type: Rainfall SensorMaterial: Aluminum alloyWeight: Approx. 524.00g/18.48ozOutput Signal: RS485Power Supply Voltage: 9 to 30VSensor Cable Length: Approx. 2.5m/98.4in (±5cm)Product Size: Approx. 85x78mm/3.3x3.1inHole Spacing: Approx. 72mm/2.8inRainfall Mouth Diameter: Approx. 60mm/2.4inMeasurement Range: 0 to 4mm/min (measurements may become inaccurate beyond this rainfall intensity)Resolution: 0.03mmAccuracy: ±4% (static test indoors, rainfall intensity at 2mm/min)Protective Level: IP65Power Consumption: 0.24W (12V DC, current less than 20mA)Operating Temperature: 0 to 65℃Operating Damp: 0 to 99%RH (non condensing)Widely Used in: Smart , meteorological environmental guard, smart irrigation, ship navigation, automatic weather stations, automatic door and window, geological disasters, etc.Wiring:Red Cable: Power positiveBlack Cable: A+Yellow Cable: B-: Power negativeCRC Check Steps:1. Initialize a 16-bit register to hexadecimal FFFF, referred to as the CRC register.2. XOR the first 8 bits of data with the low bits of the CRC register, and store the result back in the CRC register.3. Right shift the content of the register by one bit (towards the lower order bits), fill the highest bit with 0, and check the lowest bit.4. If the lowest bit is 0: repeat step 3 (shift again); if the lowest bit is 1: XOR the CRC register with the polynomial A001 (1010 0000 0000 0001).5. Repeat steps 3 and 4 for a total of 8 shifts, processing the entire 8 bits of data.6. Repeat steps 2 to 5 for the next 8 bits of data; the final CRC register obtained is the CRC code (with low byte first and high byte last).Troubleshooting:1. Incorrect displayed value on the instrument during RS485 output. Possible causes include wiring issues or communicating port faults leading to incorrect data retrieval. Check for proper and secure wiring

• 【Durable Aluminum Alloy Construction】: Crafted from premium aluminum alloy, this rainfall sensor withstands high temperatures and humid environments, ensuring long-lasting performance for smart and environmental monitoring.
• 【Accurate Raindrop Detection】: Features a drip sensing design combined with optical principles for precise counting and measurement of rainfall volume, ideal for meteorological applications and smart irrigation systems.
• 【Reliable RS485 Output Signal】: Supports a 9 to 30V power supply with stable data transmission for integration with automated weather stations, geological disaster monitoring, and marine navigation systems.
• 【Compact and Low Maintenance Design】: With no moving parts and a lightweight 524g build, this compact sensor module is easy to install, to wear, and requires minimal upkeep for continuous monitoring needs.
• 【Wide Industry Applications】: Perfect for smart , , marine navigation, automatic door/window controls, and other industries requiring precise rainfall measurement and weather data collection.
