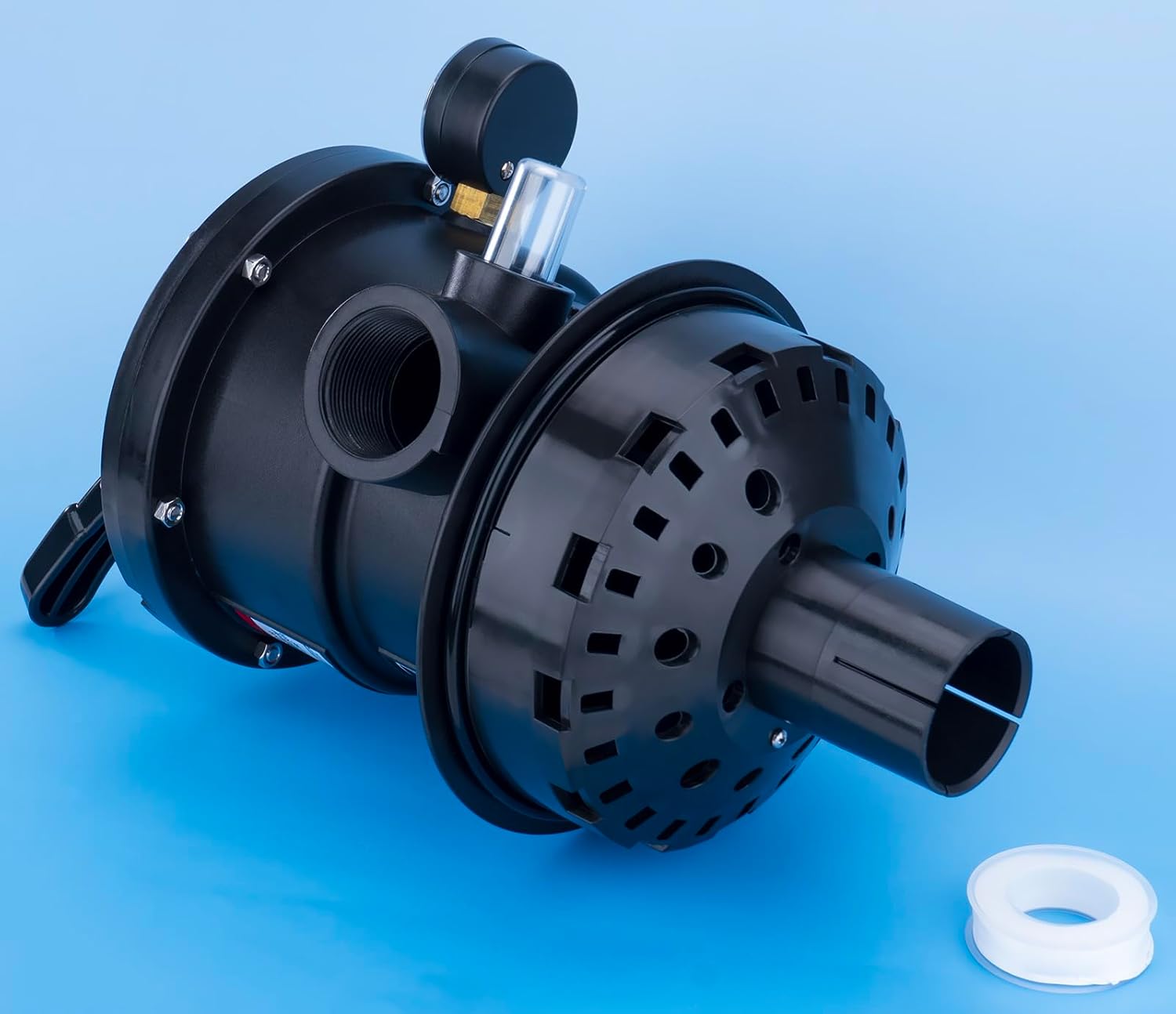

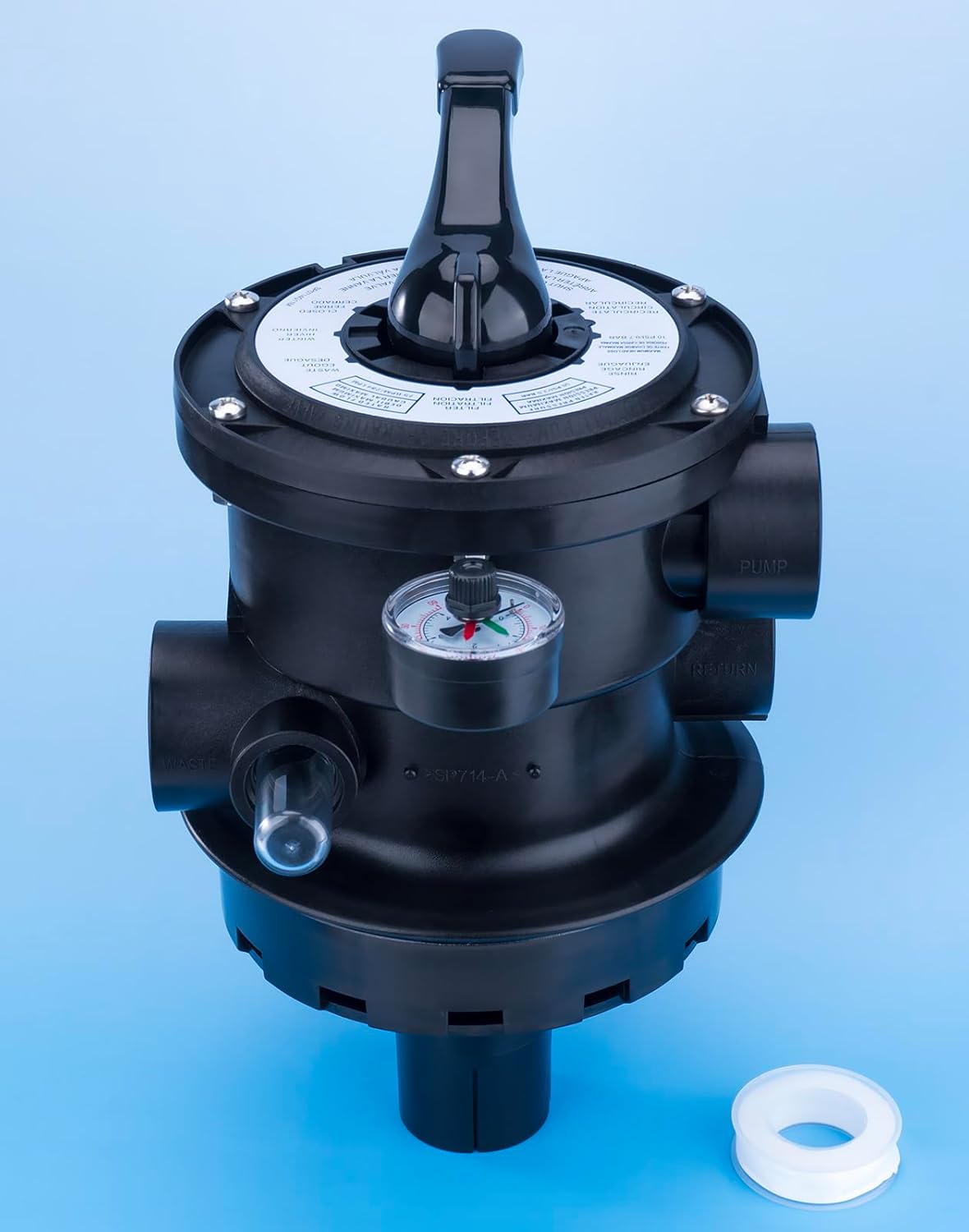

SP0714T Top-Mount Multiport Valve Compatible with Hayward Variflo S166T, S180T, S210T, S244T All ProSeries and VL Series Sand Filter,7 Positions Clamp Style Multi Port Control Valve Black

Seven Functions of Valves Positions: FILTER, BACKWASH, RINSE, WASTE, CLOSED, RECIRCULATE, WINTER. Filter – Performs standard daily filtration and routine vacuuming processes. Backwash – Cleans the sand bed by reversing the water flow through the filter to remove accumulated debris. Rinse – Following backwashing, directs the water flow to waste in order to flush out residual debris from the system. Waste – Bypasses the filtration system to either lower the pool water level or vacuum heavy debris directly out of the system. Recirculate – Circulates water back to the pool while bypassing the filtration system to maintain water movement. Closed – Halts all water flow between the pump and the filter for maintenance or shutdown purposes. Winter – Drains and prepares the valve and system for freezing winter conditions (specifically designed for SP0714T models). Integrated Sight Glass The built-in sight glass provides a clear view of the backwash process so you can stop backwashing precisely when the water runs clear , improving effectiveness and conserving water Engineered for High Flow, Low Pressure Drop The SP0714T Multi-Port Water Valve provides greater water flow at lower pressures, supporting a maximum operating pressure of 55 PSI and a maximum flow rate of 75 GPM. Compatible with Hayward ProSeries Sand Filters: S140T , S144T , S164T , S166T , S180T , S210T , S220T , S230T , S244T , S244T2 , S245T , S270T , S270T2 , S310T , S310T2 , S330T , S360T , S360T2 Compatible with Hayward GM Series Sand Filters : GM140 , GM142 , GM142-6 , GM150 , GM152 , GM152HV , GM195 , GM225 , GM245 Compatible with Hayward SandMaster Series Sand Filters : SM1700T , SM1706T , SM1900T , SM1906T , SM2106T , SM2300T , SM2306T , SM2506T Compatible with Hayward SwimPro and VL Series Sand Filters: SW196T , SW236T , SW256T , VL210T , VL240T , VL270T . Replacement Part Number : SP714T , SP0714T , SP0714TC , SP0714TE , SP0704 , SP704 , SP711 , SP714 , SP714B , SP714A , SP714T1 , SP-711-13 , SP071113 , SP71113 , SP071114 , SW711T , TM-12-H8 , 26-150-1710 , 26-253-1025 , 27515-154-000 , 27515-154-000 , CMP27515154000 , 4802-01C , 5535100 SEA , HAY06221 , HAY-06-271 , PCPTM-12-H8 , PL0714 , PRA-56-4006 . Installation was simple and easy. The control handle is very durable, it will last for many years moving forward, switching between filter, backwash, rinse and the other settings is very easy the handle moves easily with little effort. The valve is installed very tightly and there is no water seepage or leakage during installation. New unit fits perfect and switches function smooth as silk. Fastest, Easiest Way To Fix A Leaky Valve When your multi-way valve becomes difficult to turn, you need to replace the parts inside. It is much more difficult to disassemble and reassemble the valve itself than to replace the entire assembly. Just common sense is enough, Swapping out the old valve assembly one in less than 20 minutes , and you can even save the cost of hiring a professional worker.

• The SP0714T All necessary parts are included : 3-Port valve , Pressure gauge , O‑ring gasket (Installed) , PTFE Sealant tape and Slate glass (Installed) , ensuring proper fit and functionality without needing additional parts , offering a complete solution for efficient and reliable operation
• Compatible with Hayward ProSeries , GM , SandMaster , SwimPro and VL Series Sand Filters: S140T , S144T , S164T , S166T , S180T , S210T , S220T , S230T , S244T , S244T2 , S245T ... ; GM140 , GM142 , GM225 , GM245 ... ; SM1700T , SM1706T , SW196T , SW236T , SW256T , VL210T , VL240T , VL270T
• Durable Construction and Low-Maintenance Design : Engineered with Reinforced Thermoplastic and Premium Stainless Steel Components, this product is designed to withstand the corrosive effects of pool chemicals and adverse weather conditions, ensuring all-weather performance and long-term reliability. The integrated molded gasket provides a consistently reliable seal, further enhancing its durability and ease of maintenance.
• This Durable Thermoplastic Body Valve can be applied to multiple sand filter housings. Use this Multiport Valve for maximum filter efficiency and easy operation.The easy-to-operate and read handle switches between seven flow options.
• Well put together. Easy installation - The valve will significantly improve your pool maintenance routine . Until you try this one, you won't realize how poorly you maintained your last valve. This valve is well-constructed and feels sturdy, giving you confidence in its durability.
