5/8''-18 Heim Joint Rod End Kit with Spacer,Tube Adapters & Jam Nuts,RH & LH Hand Thread .625" Chromoly Heim Joints Panhard Rod End for Steering and Suspension,Traction Bars,Links Joints-2Set
$57.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by mpshungary.hu
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$57.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by mpshungary.hu
Free 30-day returns Details
Product details
| Management number | 216201709 | Release Date | 2026/04/19 | List Price | $23.20 | Model Number | 216201709 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【5/8"-18 heim joints】2 Right hand thread and 2 Left hand thread Heim set with Lock Nut Bushing Assembly,Easily transform suspensions with ease using the heim joint rod end kit, designed for easy installation through welding and additional hardware, ensuring a seamless and effective mating process.
- 【Heavy-Duty Materials】Built to withstand extreme forces, the rod ends are constructed from high-grade carbon steel with a zinc-plated finish for corrosion resistance. The 5/8" shank diameter and large spherical ball are designed for high load capacity,boasting a load capacity of 17,955 lbs.making them ideal for demanding applications like suspension links and steering systems.
- 【Adaptability】The 5/8" (.625") bore Heim Joint,forged from heat-treated C1045 Chromoly Steel,Bore: 5/8" Width: 1.50" Ball Width: 3/4" Thread Size: 5/8"-18 Thread Length: 1.63" Center Line Length: 2.63".Lock Nut: Thread: 5/8". Fits Tube Size:1 1/4" OD. x .120" Wall x 1.01" ID.note: please confirm the size specification before purchasing.

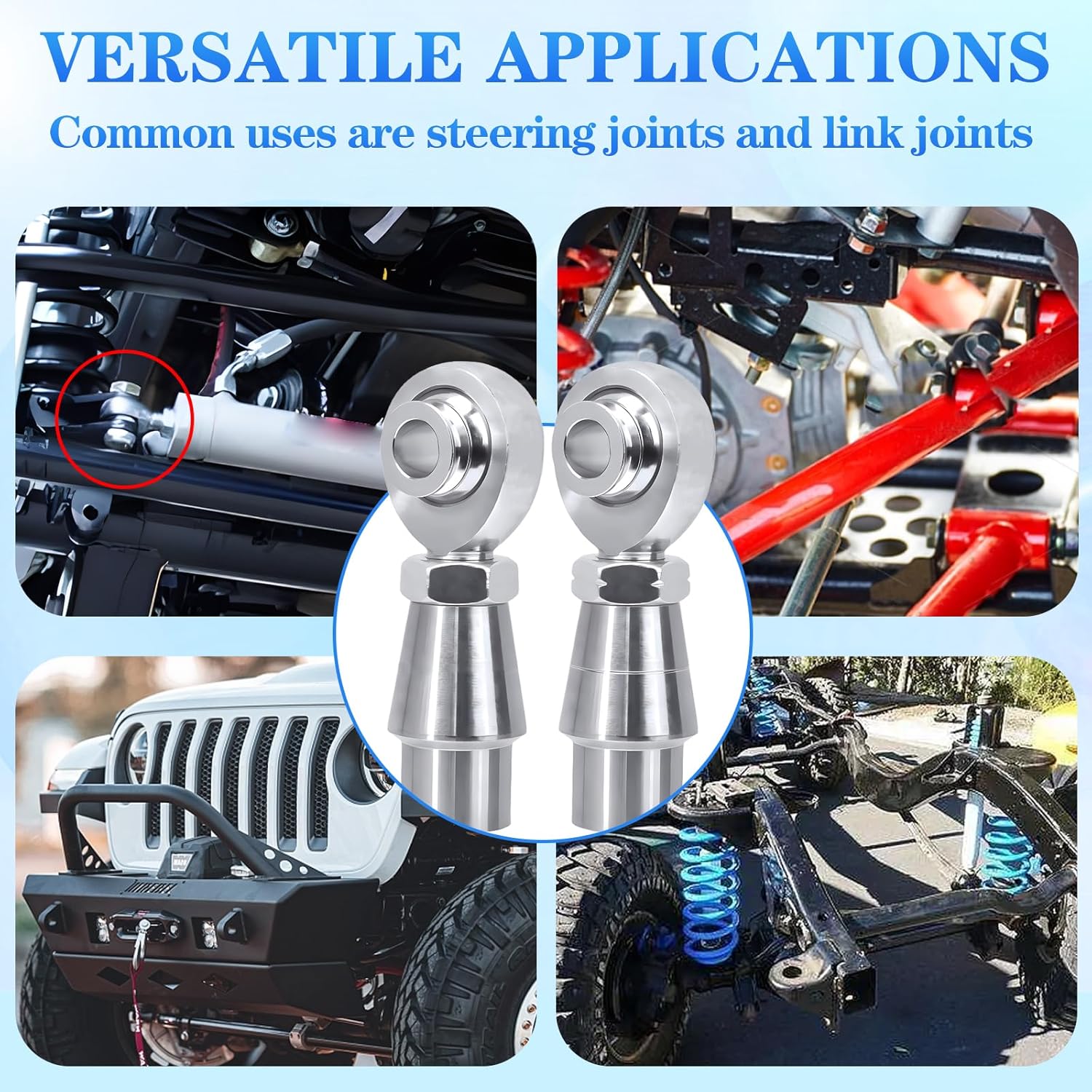

- 【Wide Applications】Our heim joints extreme load rating make these excellent for building custom steering and suspension links for trucks, 4x4s, rock crawlers, Jeeps, sand rails and more.For Suspension Kit, Tie Rod End, Inner Tie Rod End, Traction Bars and Steering Kit.
- 【Easy to install】Our heim joints for 5/8"-18 rod end designed to standard dimensions for a straightforward replacement or upgrade in a wide array of applications.Can be welded with additional hardware for mating installation.The design allows for quick and hassle-free installation, saving time and effort during setup.
