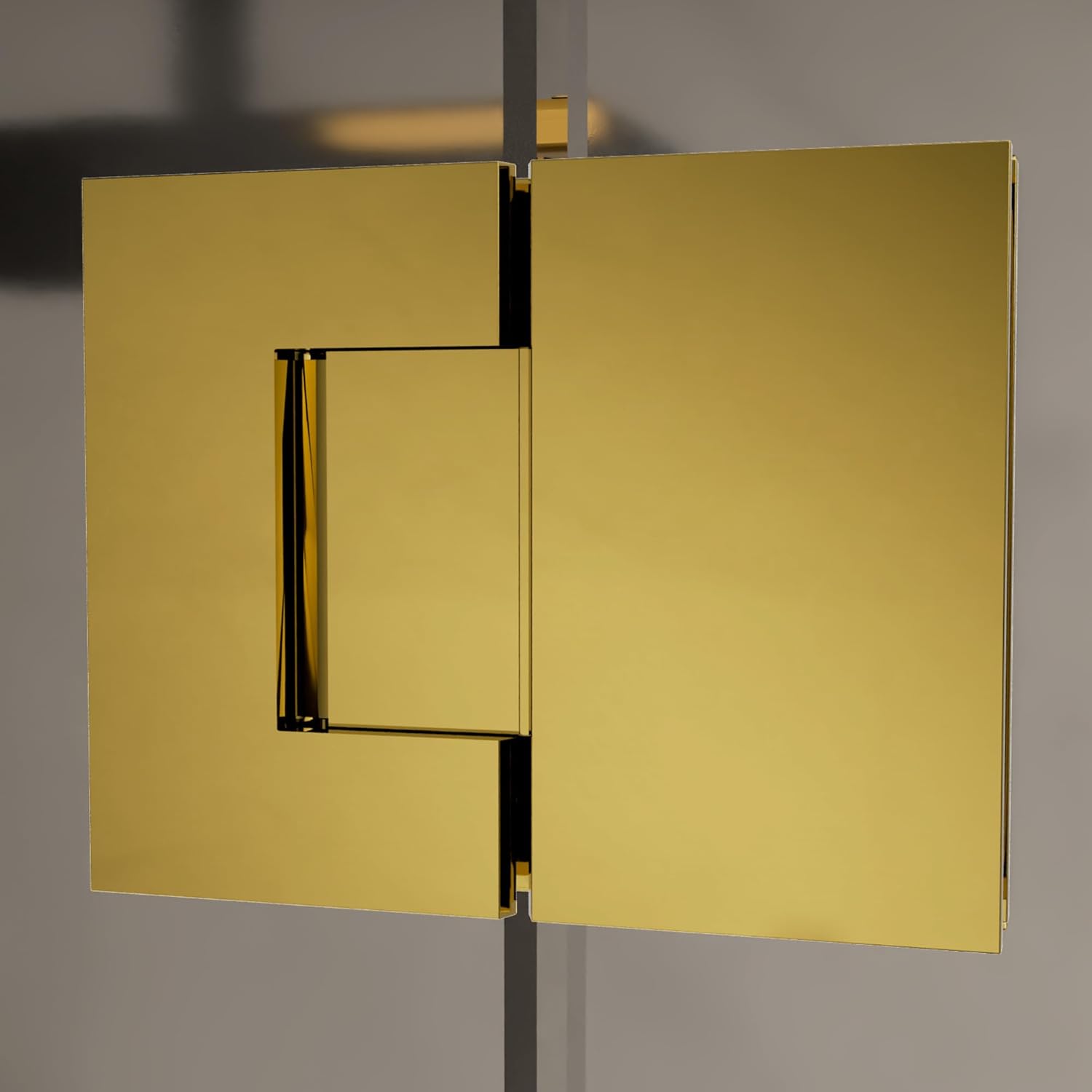

Brixwell 180 Degrees Glass-to-Glass Shower Door Hinge, 5 Degrees Preset, Solid Forged Brass, Polished Brass Finish, Height 4", Plate Width 2-1/4" Each Side, Total Width 4-11/16"

This Brixwell 180 degree glass-to-glass shower door hinge with 5 degree preset is configured for fixed panel to door connections where a clean slightline is preferred. The mechanism provides a self-centering 0 degree return using a reversible 5 degree pin and closes from 25 degree. Overall height is 4", while faceplate and backplate width of each side is 2-1/4". Total width end to end is 4-11/16". Plate gap is 3/16". Backplate thickness is 1/4" and faceplate thickness is 3/16". Precision machined stainless steel components and dual precision wound stainless steel return springs support reliable movement at the corner junction. Designed for 3/8" and 1/2" glass, the hinge is rated 55 lbs per hinge, two hinges support up to 110 lbs with a maximum door width of 36", three hinges support up to 165 lbs with the same maximum door width. The body is solid forged brass with polished brass finish. Matching finish stainless steel hex clamping screws are installed; crosshead screws and a hex wrench are included. Glass fabrication is required before fitting.

• MATERIAL: Solid forged brass hinge body pairs with precision-machined stainless steel components for the pin and internal interfaces, establishing a practical mixed-metal assembly for interior shower door use.
• DIMENSIONS: Overall height 4", faceplate and backplate width 2-1/4" of each side; total width 4-11/16", plate gap 3/16"; backplate thickness 1/4", faceplate thickness 3/16". Geometry supports balanced clamping and needed clearance.
• FINISH: Polished Brass finish coordinates with adjacent trim, matching-finish stainless steel hex clamping screws and crosshead screws are supplied for a consistent appearance across visible hardware at the corner junction.
• GLASS COMPATIBILITY: Designed to fit 3/8" and 1/2" glass thickness, requiring a cutout in the panel for mounting, making this hinge suitable for frameless shower doors, bathroom partitions, or glass-to-glass installations.
• FUNCTION AND GEOMETRY: This hinge for corner returns gives self-centering 0 degree return with 5 degree preset manages alignment so doors settle consistently at the strike while preserving clean sight lines in frameless shower layouts.
• HARDWARE INCLUDED: Comes with Matching finish stainless steel hex clamping screws, crosshead screws, and a hex wrench, providing all required parts for mounting this glass to glass hinge securely in frameless shower doors or glass enclosures.
