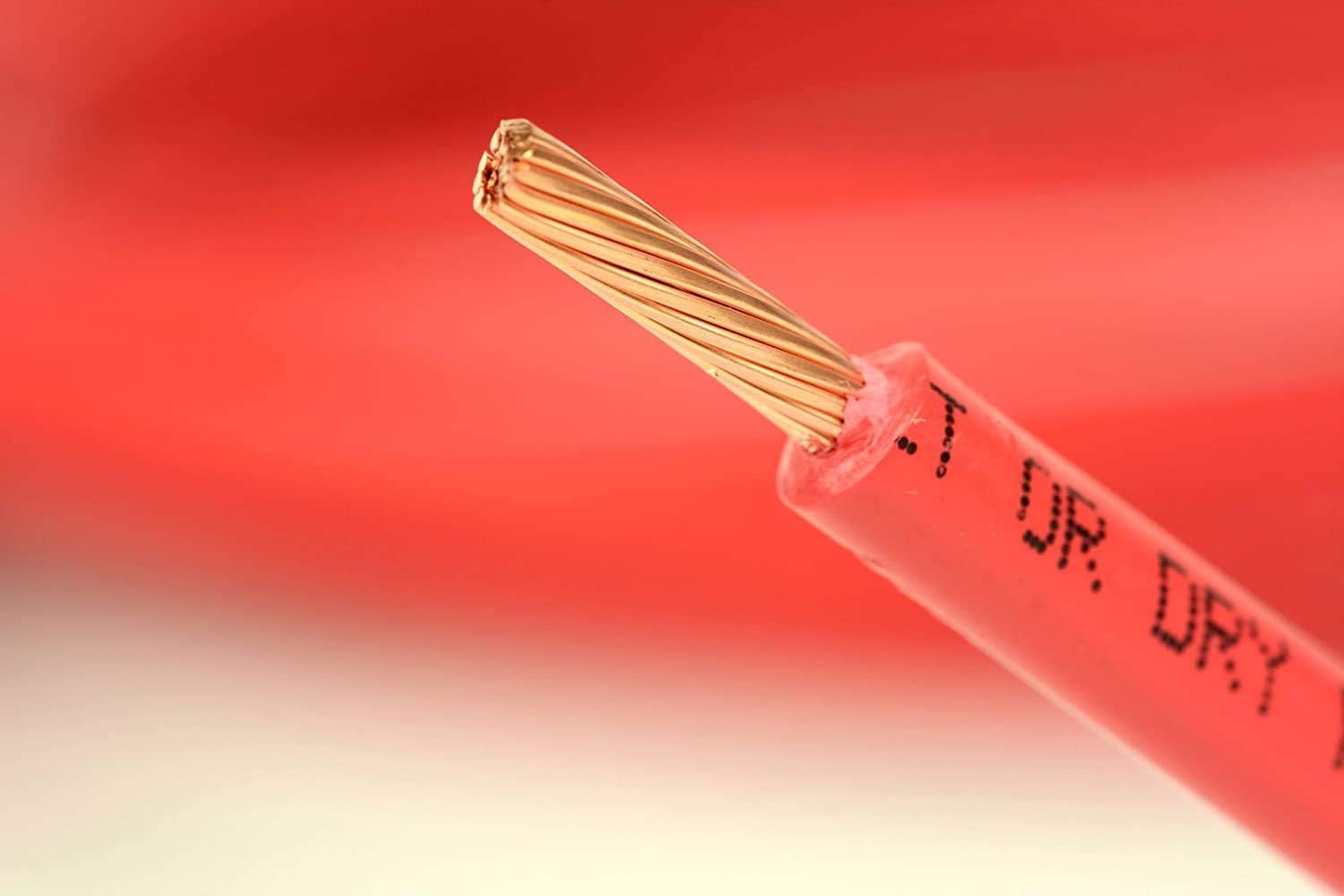

TEMCo 5ft 10 AWG Red Solar Panel Extension Cable with M-F Solar Connector Ends Qty:2
Product details
| Management number | 216875772 | Release Date | 2026/04/19 | List Price | $11.38 | Model Number | 216875772 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
2 lengths of 5 ft. each. UL 4703 rated cable is superior to USE-2 in regards to low temperature flexibility, sunlight resistance, and flame resistance. PV wire for solar panels also has a thicker jacket and insulation than USE-2 wire. USE-2 cable is used in grounded PV systems only, which UL 4703 cable can be used for both grounded and ungrounded arrays. Silver-plated Copper Terminals outlast and outperform tin-plated models. Used for Solar panels, DC circuits, and inverter wiring.Connectors rated for 35 amp 1000v, 10 AWG wire rated for 40 amps Test voltage: 6 kV (50 Hz) PC/PA Insulation Rated for -40°C ~ 85°C IP67 Protection Grade, Safety class II, Flame class UL94-V0 Contact resistance Less than or equal to 5 mOhm Insertion force: Less than or equal to 50N Withdrawl force: Greater than or equal to 50N Snap-in locking system Bare copper conductor Cross linked Polyethylene (XLP) insulation Max. voltage 600 V, -40°C to 90°C Type USE-2 per UL 854, RHH/RHW-2 per UL 44, Type PV per UL 4703
- Lifetime warranty. Don't choose a product that will degrade or fail before your panels do. MADE IN THE USA
| Manufacturer | TEMCo |
|---|
